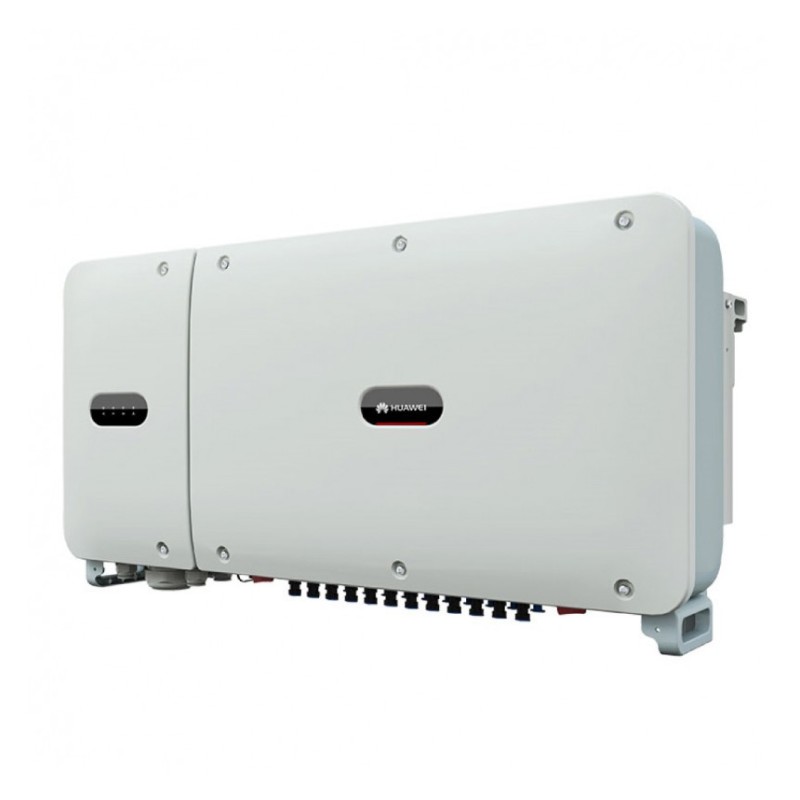

Huawei SUN2000-50KTL-M0

Huawei Sun2000 series inverters are solar inverters designed to maximize the energy efficiency of PV systems installed on both roofs and on the ground.

Technically, the inverters work with a three-phase grid, which is an optimal solution for both the power grid and for direct consumers of electricity in households. AI-based technology, smart monitoring, it quickly detects errors and reduces the time needed to locate and repair faults.

The inverter provides maximum efficiency of up to 98.7% and is equipped with advanced six MPPT systems with the possibility of connecting 12 PV strings, which optimizes the amount of electricity generated.

Distinguishing features:

• Maximum efficiency 98.7%
• Input voltage range 200 to 1000 V
• 6 MPPTs, 12 PV strings
• Grounding failure protection
• Built-in leakage current monitoring system
• Smart PV string monitoring, fast fault detection
• String-level management and optimization
• Remote diagnostics of I-V curve of all strings
• Ambient temperature range: -25°C to +60°C
• LED status indication
• Passive cooling

Operation and installation:

• Easy assembly and disassembly with mounting brackets
• Two DC disconnectors, 6 strings each
• DC polarity reversal protection
• Built-in AC and DC-side surge protection type II
• Communication via RS 485, LAN, PLC and Bluetooth as standard
• IP65 rating
• Dimensions 1075 x 555 x 300 mm

Use:

• Touch-free inverter operation
• Application for configuration and monitoring
• LED indicator on the housing
• Quiet operation
• Remote technical support
• 5-year warranty
